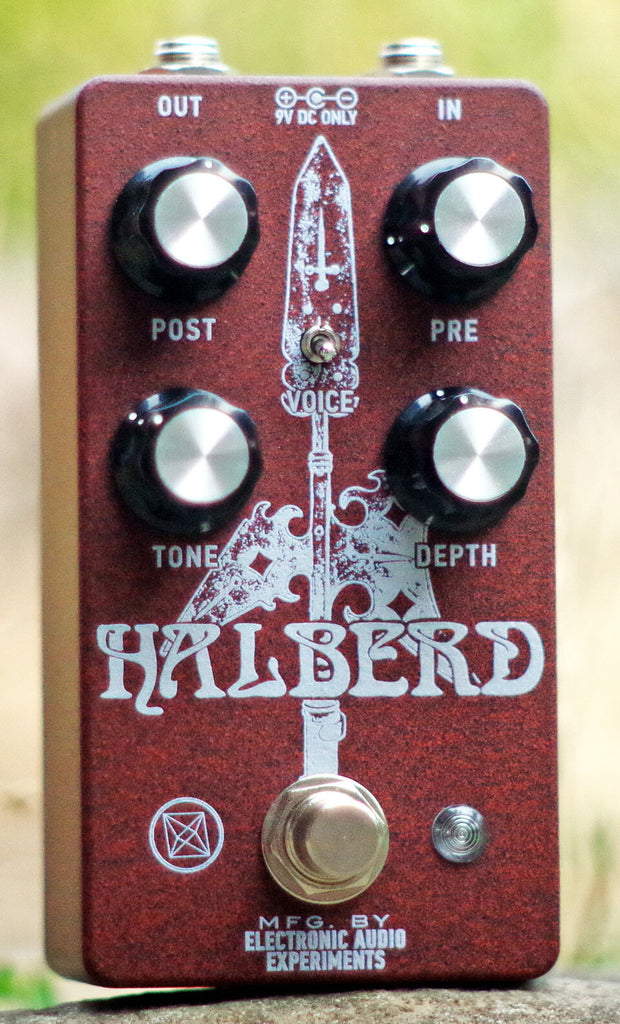

The Electronic Audio Experiments Halberd is a discrete transistor overdrive circuit designed for the greatest possible dynamic range and note clarity. It is a novel addition to our family of drive pedals—a medium-gain device with the harmonic fullness and grind of a much higher-gain pedal, one that stands apart from both the brazen buzz of op amp distortion and the smooth breakup of JFET amp emulations alike.
The Halberd’s character comes from a jumble of silicon and germanium transistors working in harmony. It is familiar but unique, sitting somewhere between blown-up tweed and an overdriven console. Rather than resigning itself to transparency, it imparts its character in a collaborative fashion, responding in unique ways to different instruments and amplifiers but not without leaving its distinct fingerprints. And of course, it is equally at home on guitar, bass, and synthesizer.
Pre: This sets the overall signal gain. Lower settings impart light compression, then increasing amounts of clipping up to a medium overdrive, depending on pickup output and the Low setting.
Low: This is an adjustable low frequency shelving filter at the input, and is very interactive with the setting of the Pre control.
High: This is an adjustable high shelf cut at the output, for taming harsher frequencies especially at high gain settings with Low cutting bass.
Post: This sets the overall output level, and is buffered for full transparency at all signal levels.
1590BBM size enclosure
Buffered bypass via high-headroom class-A JFET buffer
Soft-touch relay switching for many cycles of hassle-free operation
Uses standard 9V center negative power ONLY - any other power supply will void the warranty!
Current draw: 100mA
Bypass switching: Relay-based with JFET bypass buffer.
Input impedance @ 1Khz: 3.3MΩ
Output impedance @ 1Khz: 1kΩ
Power: 9VDC, 2.1mm center negative barrel. The current draw is 100mA.
We recommend a regulated, isolated power supply rated for 100mA. Our pedals do not accept batteries. Use of an incorrect power supply may cause permanent damage.
