Echo Fix

EF-P2

  • Sale
  • Regular price $349.00
Shipping calculated at checkout.

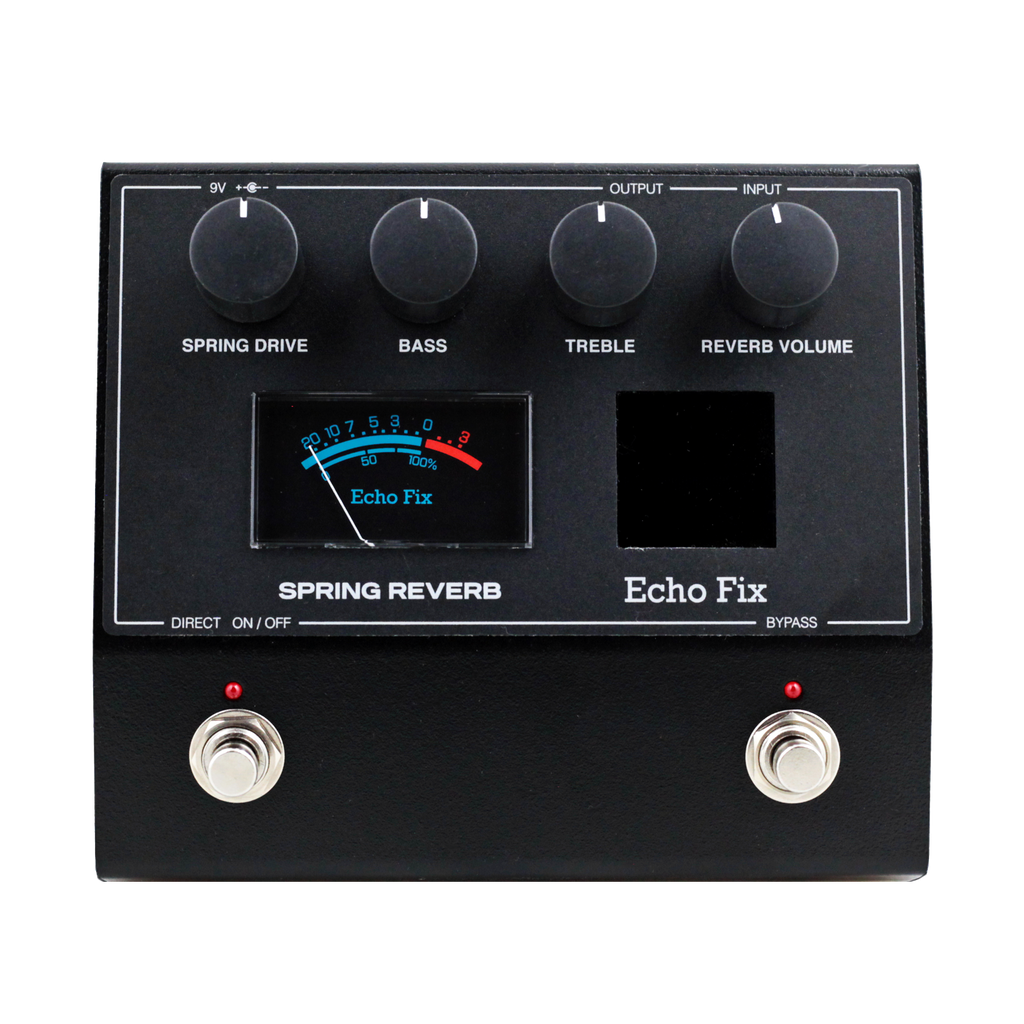

The Echo Fix EF-P2 is a real Spring Reverb pedal that packs a huge sound into a small enclosure. The EF-P2 features a three-spring reverb tank, adjustable Spring Drive, Bass / Treble EQ controls, and Reverb Volume control. With a footswitch for reverb bypass and also a direct signal mute footswitch, the EF-P2 can also be used as an outboard effect in recording studios. With increased voltage rails for studio use, the EF-P2 can accept line level inputs from synths and other audio devices, not just guitar.

Features:

  • Real spring reverb pan
  • Spring drive control
  • Bass control
  • Treble control
  • Reverb Level Control
  • Soft momentary switching for noiseless
  • Bypass and Direct Mute switching
  • Increased internal power supply voltage rails for increased dynamic range
  • Illuminated reverb tank viewing window

Power - 9VDC Centre Negative
Current - 200mA minimum
Input Impedance - 1MΩ
Output Impedance - 1KΩ
Dimensions - 160mm x 130mm x 60mm (6.29" x 5.11" x 2.36")
