Dr Scientist

Bitquest

  • Sale
  • Regular price $249.00
Shipping calculated at checkout.

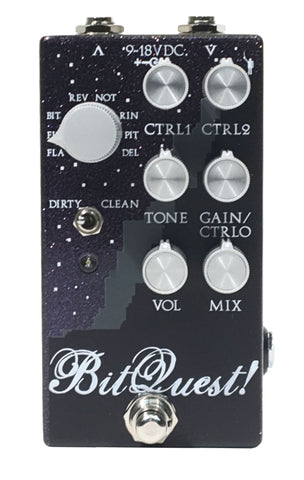

The BitQuest is a compact, multi-effects pedal featuring 8 fun and adventurous patches that can be used with or without a built-in digital fuzz. The patches on hand include a full featured flanger, high pass and low pass filters, a bit crusher with sample rate reducer, an infinite reverb, a deep notch filter, a ring modulator with reverb, a +/- 1 octave pitch shifter, and a wild glitch delay. Like all Dr. Scientist pedals, the BitQuest can be used with guitar, bass, synths, and many other instruments.

Features

  • 8 custom programmed digital effects in 1 small box
  • 24 Bit A/D conversion at 32kHz sample rate
  • High quality analog signal path
  • Premium parts and components throughout
  • True Bypass with soft touch relay switching
  • Full control over wet/dry mix
  • Expression pedal control over CTRL1
  • Top mounted audio and power jacks
  • Designed and handmade in B.C., Canada

Knobs

  • CTRL1 – Controls parameter 1 of the current patch (Also controllable by expression pedal)
  • CTRL2 – Controls parameter 2 of the current patch
  • TONE – Cuts or Boosts the high frequency content of the Effect (Wet) signal
  • GAIN/CTRL0 – Controls parameter 0 of the current clean patch or gain of the current fuzz patch
  • MIX – Adjusts the balance between Input (Dry) and Effect (Wet) signals
  • VOL – Controls the Effect (Wet) signal level
  • FUZZ/CLEAN – Toggles between Fuzz mode or Clean mode
  • Patch selector – Choose between 1 of 8 effects
  • Bypass – Engage or disengage the effect

Operation

  • Input/Output Impedance: 500kΩ/1kΩ
  • 100mA @ 9VDC, 200mA @ 18V, 2.1mm centre negative plug
  • True Bypass with soft touch relay switching

Additional Specs

  • Mono input, Mono output, TRS Expression input
  • Tone Control: +/-15dB 2nd Order peaking filter centred at 3kHz
  • Exp Input: TRS cable, 10kΩ to 100kΩ resistance
  • 24 Bit A/D Converters at 32kHz sample rate
  • Dimensions: 70mm wide, 129mm long, 59mm tall (2.75” wide, 5.1” long, 2.3” tall)
